I just bought a Cooler Master Hyper 212 Plus CPU cooler for my Intel Core2Duo E4500 (due for an upgrade), as I managed to bend Intel stock cooler’s stupid mounting bracket and after that it wouldn’t properly touch the processor and caused the processor to overheat a little.
I decided to buy Hyper 212 after going through several reviews and because of the fact that it came with a proper mounting system, which is tied down by screws. This was essential for me, as I have plans to buy Intel Core i5 or i7 processor in a year or so and they too come with same pathetic CPU coolers.

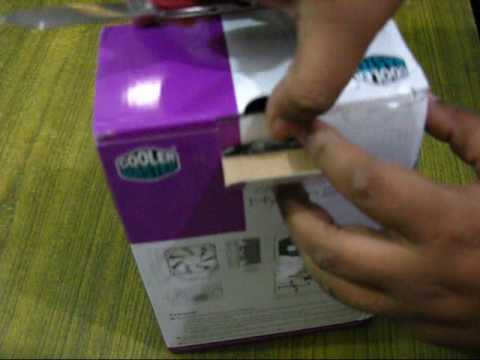

First up is the unboxing video of Cooler Master Hyper 212 Plus, which happens to be the first ever unboxing video I made.
After the unboxing was done and I read the instructions briefly and tossed the stock cooler out, it was time to get started with the install.
Installing the back plate was quite an easy affair, though since my system was already up and running, I had to take out the mother board and install it back again, which actually was more effort than the back plate installation!
After the motherboard was put back in place, it was time to mount the heatsink, which actually proved to be slightly tough and I had to refer back to the installation guide couple of times, as the screws wouldn’t seat properly. But it turned out to be an error on my part, and soon the heatsink and fan (easy mounting) was mounted and it was time to boot the system.
I was surprised by the fact that in BIOS, CPU temperature was coming out to be 18 degree Celsius, even though I hadn’t yet connected the fan! After the fan was connected and set to PMW, more shock was instored for me as the idle temperature after booting into windows was 33-34 degree Celsius. I have only seen this kind of temperature in the peak winter of Delhi and that too when I had managed to properly install stock Intel Cooler with Artic Cooling MX-2!
After a bit of fiddling around, it was time to download Prime95 and do some stress testing. With Prime95 using 100% of both the cores, temperature remained around 46-47 degree Celsius and even after 5 minutes, refused to climb above 48 degree, with the CPU fan only touching 1331rpm and that too in a system which is only running 1x120mm front intake and 1x80mm side intake fans, which are damn slow!
Earlier even in winter with the stock cooler at maximum efficiency, Prime95 used to cause the CPU temperature to jump to 65 degree after couple of minutes! So it goes without saying, that I am quite impressed by Cooler Master Hyper 212 and feel it is well worth the money spent. Of course I am hoping for the temperatures to go down even further, after the thermal paste has gone through its burn in process.
In my cabinet (Zebronics Bijli) I had to remove the one of the side fans to ensure that the lid can be closed (I was initially unsure about this) , apart from this, cooler was a perfect fit. If you are looking to buy Cooler Master Hyper 212 Plus, make sure to check the width of your cabinet and then buy.
Cooler Master Hyper 212 Plus specifications:
Model: RR-B10-212P-G1
CPU Socket: Intel: Socket LGA1366, 1156 and 775; AMD: Socket AM3, AM2 and AM2+
CPU Support: Intel Core i7 Extreme, Core i7, Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium and Celeron; AMD Phenom II X4, Phenom II X3, Phenom X4, Phenom X3, Athlon X2\, Athlon and Sempron
Dimension: 120 x 79.7 x 158.5 mm (L x W x H)
Weight: 626g
Heat Sink Material: Aluminum fin
Heat Pipes: 4 pcs
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 600 – 2000 R.P.M. (PWM)
Fan Airflow: 21.2 – 76.8 CFM
Air pressure (mmH2O): 0.40 – 3.90 mmH2O
Bearing Type: Long life sleeve bearing
Fan Life Expectancy: 40,000 hours
Fan Noise Level (dB-A): 13 – 32 dBA
Connector: 4-pin
6 Comments
Thanks Dude
thanks For above info….
I am having same issue. I Live in Pune where ambient temp is 25-35 oC
My Cpu’s idel temp Is 50-50oc and On load reaches 60 oc
max temp for it is 62oc.
SO i m Throwing that Stock Fan and will use this Cooler master 212 +
Thanks DUDE
Hi yogesh,i liked you zebronicsd bijli review,Is that a bijli case and can you fix the side panel of the case as before after installing the hyper 212 plus or is there any clearence issue ??,and how much u paid for that?
Thanks!
Suyash that is great, just make sure to read the mounting instructions carefully and rest would be fine.
Aneesh, I can fix the side panel, after removing the top side panel fan. It does however touch the side panel, so clearance can be an issue, in case there is slight difference in size of the cabinet, you buy. If I remember correctly, I paid around 1.8-1.9k for Cooler Master Hyper 212.
Hi Yogesh,
I just Google info about cooler master 212+. I found a Big problem in 212+ that the Baseis Uneven and coz a problem while removing the heat of Processor as surface at bootom is Uneven .
Otheres Suggest to Use Cooler master 212 old One as the bas is plane copper.
But i Can see that 212 cannot support the AM3 sockets For amd Phrnom x4 965 BE procc
Are u facing any problem In This 212+ Model?
Plaese tell me ur Pc deatils
Like Which Cobby u use?
How Many fans?
How u place it and where?
What is ambient temp?
etc etc…
Haven’t faced any problem with Cooler Master Hyper 212 and there is just one 120mm slow fan at the front another 80mm slow fan at the side of the case (Zebronics Bijli).
The room in question only has a fan and a desert cooler and in the height of Delhi, indoor temperatures can and sometime do touch 35 degree Celsius and despite that, idle temperatures remain at 37-38 degree Celsius with the Hyper 212 fan spinning at 920rpm.
As far as I know, Hyper 212 does supports AM3 sockets, though you might want to double check with their support.
Hi!! I’m just planning to upgrade my rig after 2-3 months and planning to buy i5 or i7 same as you, but currently i’m using core 2 duo E7500. My ques is can I use this cooler with Asus P5G41C-MLX motherboard??
